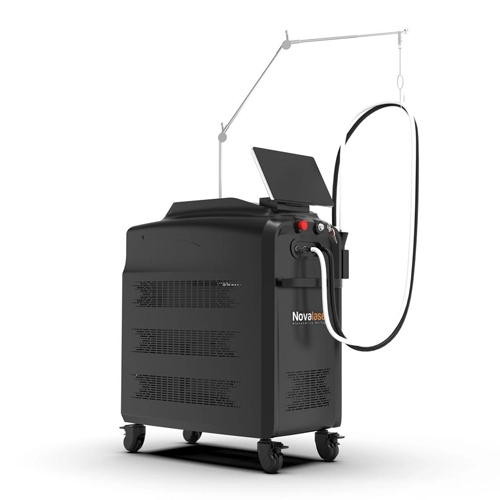

NOVALASE
Alexandrite & Nd:YAG Laser
755 nm | 1064 nm
Technical Functioning
Novalase combines two powerful wavelengths — 755 nm Alexandrite and 1064 nm Nd:YAG — offering effective treatments for all skin types. Alexandrite is optimal for lighter skin tones and finer hair, while Nd:YAG ensures safe epilation and vascular treatments on darker phototypes.
Thanks to its advanced cooling system (water + semiconductor + optional cryogen), Novalase delivers fast, safe and comfortable sessions, making it ideal for demanding aesthetic practices.
Clinical Indications
- Hair Removal
– 755 nm: Selective targeting of melanin in fine/light hair
– 1064 nm: Deep follicular penetration for darker skin types (phototypes IV–VI)
→ Fast reduction of visible hair with minimal tissue damage - Vascular Lesions
– 1064 nm targets deep vascular structures (telangiectasias, varicosities, diffuse redness)
→ Coagulates hemoglobin with minimal collateral damage - Pigmented Lesions
– 755 nm absorbs melanin in lentigines, sun spots, post-inflammatory hyperpigmentation
→ Gradual clearance with uniform skin tone and enhanced luminosity - Photorejuvenation
– Stimulates collagen, improves skin texture, and reduces signs of aging
→ Smoother, firmer, and brighter skin
Technical Advantages
– Dual wavelength platform for tailored treatments
– TEC-based cooling system: water + air + semiconductor + cryogen (optional)
– Optimized pulse duration and fluence for high efficacy
– 8 mm laser rod + 27 cm xenon lamp + 1.5 mm core fiber
– Adjustable spot size: 1.5 mm – 20 mm
– Uniform energy delivery: up to 110 J @1064 nm, 80 J @755 nm
Technical Specifications
Pulse Energy
≥110 J (1064 nm), ≥80 J (755 nm)
Pulse Duration
0.3–100 ms
Repetition Rate
0.3–10 Hz
Energy Stability
≤3% (1064 nm), ≤5% (755 nm)
Input Power
≤5000 W
Cooling Power
≤600 W
Operating Temperature
10–35°C (1064 nm), 25–45°C (755 nm)
Humidity
<60%
Optical Interface
D80
Fiber Core Diameter
1.5 mm
Spot Size
Adjustable from 1.5 to 20 mm
Fiber Length
3 m
Cooling System
TEC + Compressor + Air + Water
Power Supply
AC 220V/110V – 50/60 Hz
